Automatic CNC wood 6 six sides boring drilling machine with double-sided grooving for woodworking furniture
Dust collection
Machine Advantages:
1. Complete six sides processing and slotting and milling at one time; Easy to operate, flexible to use, and free from manual intervention.
2. Equipped with a rear feed roller, so the processing plate supports two directions (front and rear) to come out. As for rear direction, an optional power expenditure roller or a side roller can be selected;
3. Equipped with front, rear, left, right, and horizontal hole machining auxiliary pressure rollers; With alll-round auxiliary pressure processing to ensure the accuracy of horizontal hole machining during workpiece processing.
4. Designed with vertical pressure roller to ensure the machining accuracy of the vertical hole and slot.
5. Manufactured with upper and lower spindles, so there is no need to turn the plate for forward and reverse plotting.
6. With automatic dust collector; With extra-long X slide rail (5.1 m), which can reduce times of feeding and picking during long workpiece processing, and improve processing efficiency.
7. Allowed to be used for joint processing of hinge holes; The sheet can be mirrored on both sides within a certain thickness range
Quick Info.
| Model | HB62D |
| Vertical spindle unit | 12*2 (Topside) 7 (Bottom side) |
| Horizontal spindel | 2(Left)+2Right) and 2(Front)+2(Back) |
| Drilling Moter power | 2.2kw 4000rpm |
| Router type | Er25 |
| Tool shank diametor | 10mm |
| Router power | 6kw |
| Router Rotation speed | 18000rpm |
| Min.width of workpiece | 50mm |
| Max.width of workpiece | 1200mm |
| Min.length of workpiece | 250mm |
| Max.thickness of workpiece | 50mm |
| Working table height | 950mm |
| Total power | 20.3kw |
| Working voltage | 380V 50HZ or Customize |
| Air pressure | 0.6-0.7Mpa |
| Weight | 3000kg |
| Overall dimensions | 5100x2700x1800mm |

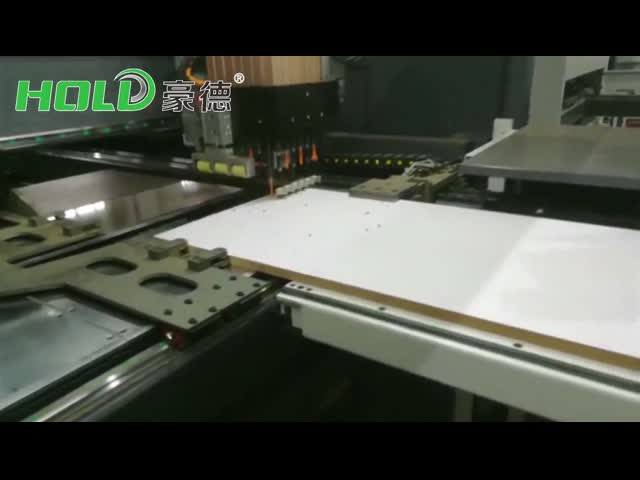

Product video
About our company
One-stop solution for
interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
